Dust Storm with Gravitational Settling

Start with the previous dust simulation

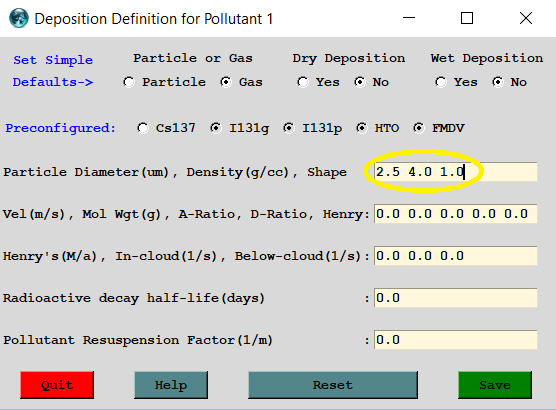

and set the deposition menu for a density of 4.0 g/cc, diameter of 2.5 µm, shape factor of 1.0

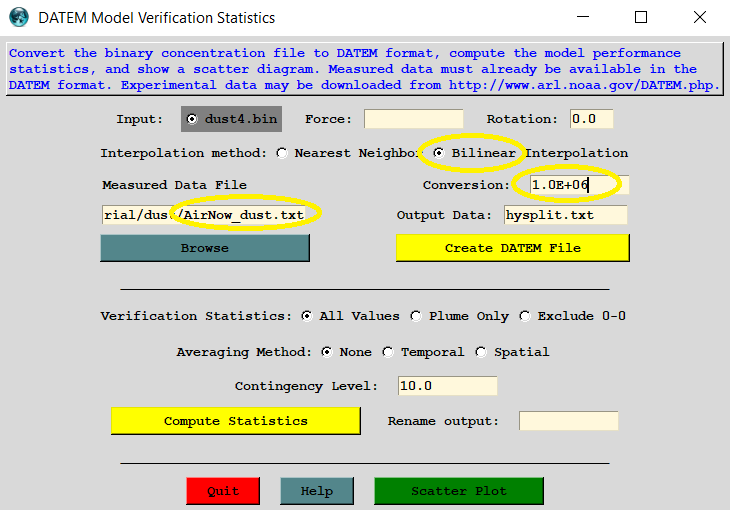

Open the convert to DATEM menu to analyze the results


Compare mean model scatter diagrams

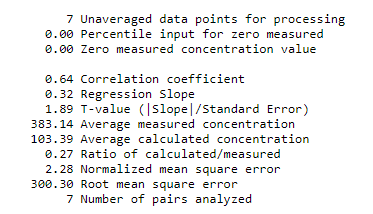

No Deposition

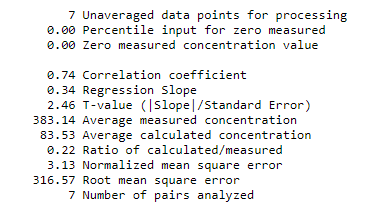

With Deposition


Although the under-prediction has slightly increased, the correlation has improved with the added deposition, presumably due to the settling of more particles into the surface layer.




Graphic with Sampling Data and County Boundaries

Optimize map
