  • Problem #1 - The multiple particle release section showed that when the particle number was increased from 100 to 1000 and then again from 1000 to 10000, each time the maximum concentration decreased by about half during the last sampling time period (0500 UTC). The 100,000 particle simulation was not shown, but the maximum concentration would have only decreased by 10% from the 10000 particle simulation, suggesting that a 10,000 particle release was sufficient for the 0.05 deg resolution concentration grid. What resolution concentration grid would be required if the simulation were to consist of only 1000 particles?

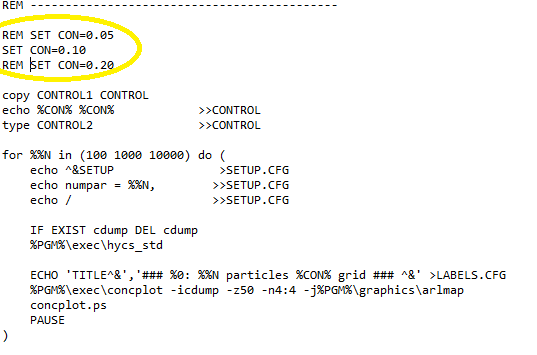

  • Hint - Retrieve conc_test_control.txt and conc_test_setup.txt and reconfigure the tests for different grid resolutions or simply edit the conc_part.bat (or .sh) file.

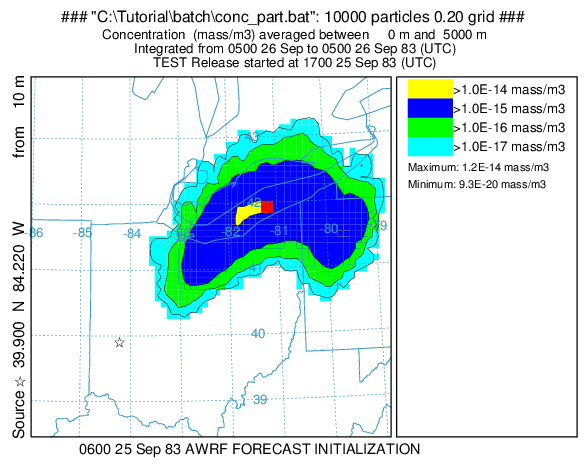

  • Solution - The 1000 particle simulation required a 0.20 deg grid or greater for the maximum concentration result to be similar to the 10,000 particle simulation. A too small a concentration grid may result in under-sampling if an insufficient number of particles have been released. An explanation for this result might be inferred from this illustration. In this case the under-sampling is shown for n=6 but for n>=12, the larger number of particles in the sampling box does not change the maximum concentration because each particle contains a proportionally smaller fraction of the mass.



  • Problem #2 - From the previous problem, can you explain the changes to the minimum concentration? Minimum concentrations can be important, especially when comparing calculations to measurements where the instrument has a detection threshold.

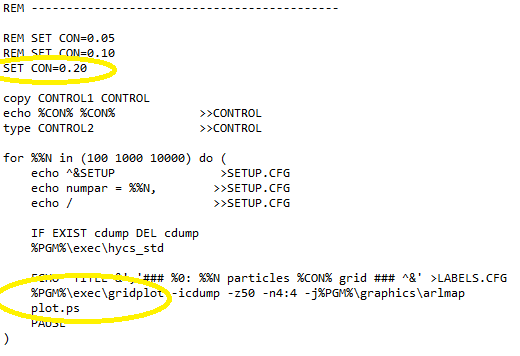

  • Hint - Unfortunately, the minimum concentration values shown by the concplot program in the previous graphics cannot be used because they are an artificial result of interpolation by the contouring program. Maximum concentrations are set explicitly. Instead rerun the script but use the program gridplot and view the output file plot.ps. No other changes are required.

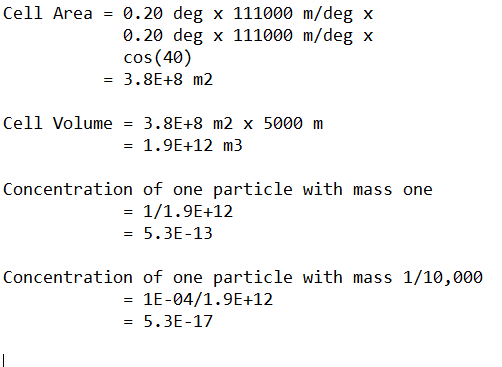

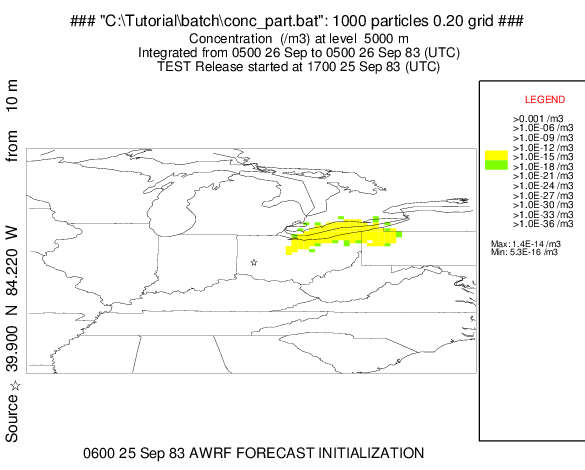

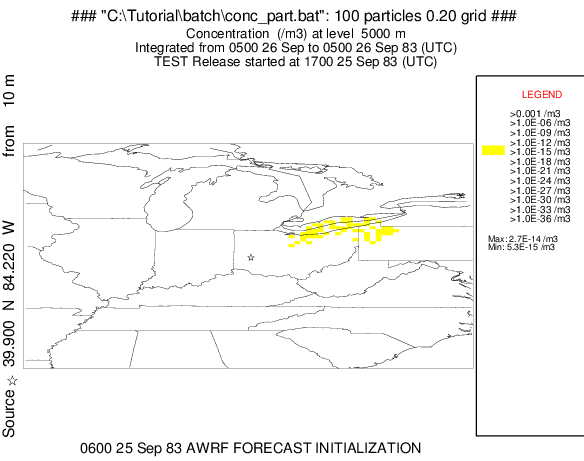

  • Solution - You should get values of 5.3E-15, 5.3E-16, and 5.3E-17, respectively, with each factor of 10 increase in particle number! The minimum value is directly proportional to the particle number because the minimum concentration is the result of one particle residing in one concentration grid cell. Using a calculator, how would you compute the expected minimum concentration for the 10,000 particle simulation?
