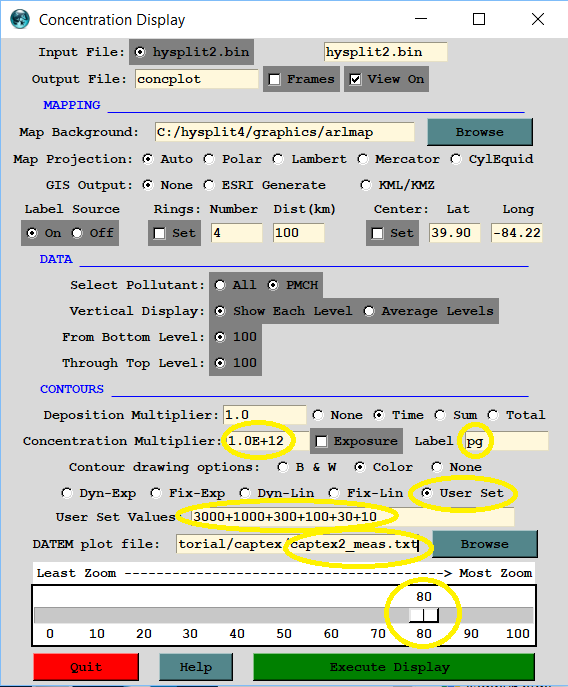

CAPTEX Animation with Measurements

• Load captex_control.txt and captex_setup.txt
• Change sample start time to 2100 and duration to 6 hours

Create SVG output file

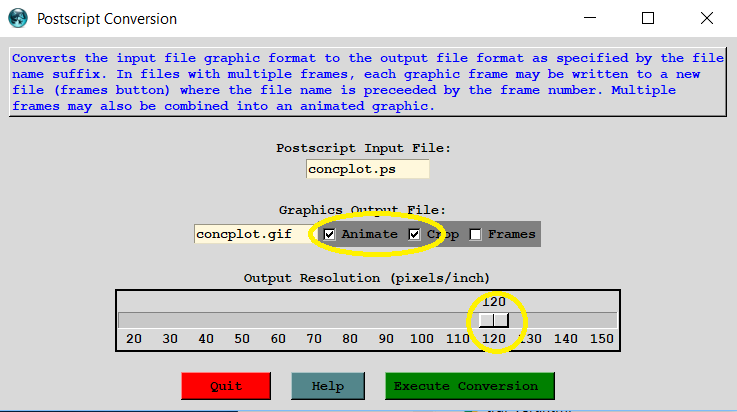

Convert SVG file to GIF animation

CAPTEX Animation using Google Earth

Rerun Contouring with KML/KMZ Option

Sequence Frames in GE and Save Each Image
frame01.png, frame02.png, ...

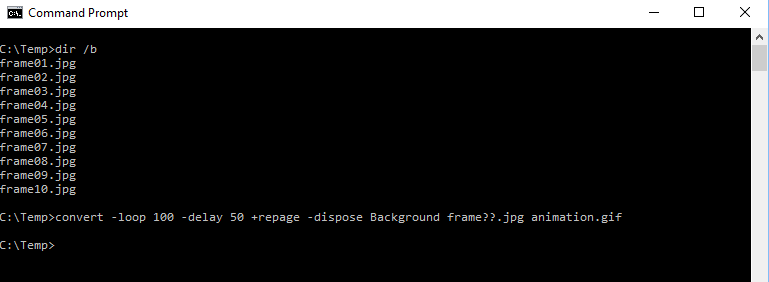

Use Image Magick Convert Command:
convert -loop 100 -delay 50 +repage -dispose Background frame??.jpg animation.gif

Trajectory Frequency using Center-of-Mass Particles

Create a script to edit by appending two scripts

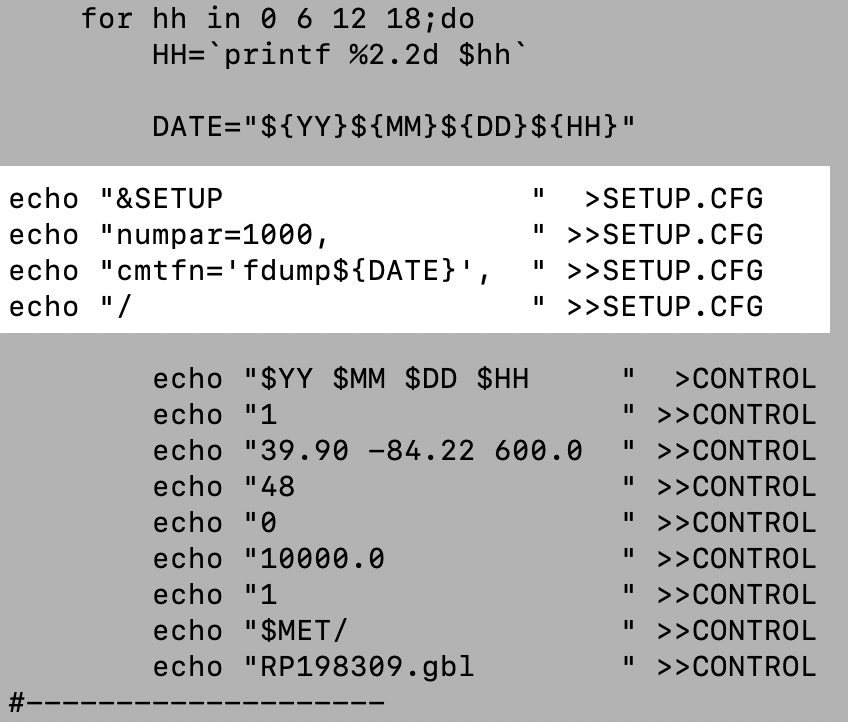

Move the namelist section to the day-hour loop and edit

Move control file section after the meteorology and edit

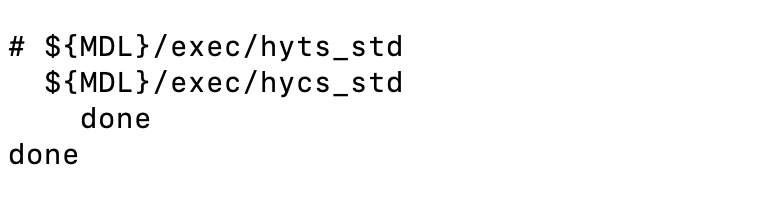

Replace the trajectory with the concentration executable

Delete the remaining lines from second script and run
